Heavy Duty Tanalised Redwood Pergola | Complete DIY Kit

Tanalised, pressure treated heavy duty timber Pergola DIY Kit, manufactured from high quality redwood timber treated to ensure a 10 year warranty for rot. Many sizes available and bespoke designs are catered for, contact us for any special requirements. Manufactured by members of the guild of master craftsmen.

We have a great selection of pergolas and gazebos, see the full Timber Pergola and Gazebo Range.

We also offer a Scandinavian Spruce pergola which is a slightly lighter colour with less imperfections, is on a quicker delivery and also slightly more cost-effective.

This range goes up to 4.2m long, if you want longer please checkout our XL Size Timber Pergola Kits.

Now delivered anywhere in the UK for free apart from Scottish postcodes IV and KW and some other remote areas, we can still deliver there but it's at extra cost, please check if you are not sure, we do not currently deliver to Northern Ireland.

Post length is 2.4m or 2.7m, these are selectable above, we recommend 2.4m if you are using base plates to fix down, 2.7m if you are digging into ground/ concrete, if you select 2.4m you get base plates, if you select 2.7m you do not.

The length and depth are determined by the options selected above, the first dimension is the length, the second the depth and direction of the multiple roof runners, the dimensions refer to the widest point of the outside of the roof rails, it is then approx 200mm narrower than the roof rail dimension to the outside of the upright posts each side so 400mm in total, so for example a 3 x 3 pergola would be 2.6 x 2.6 to the outside of the upright posts.

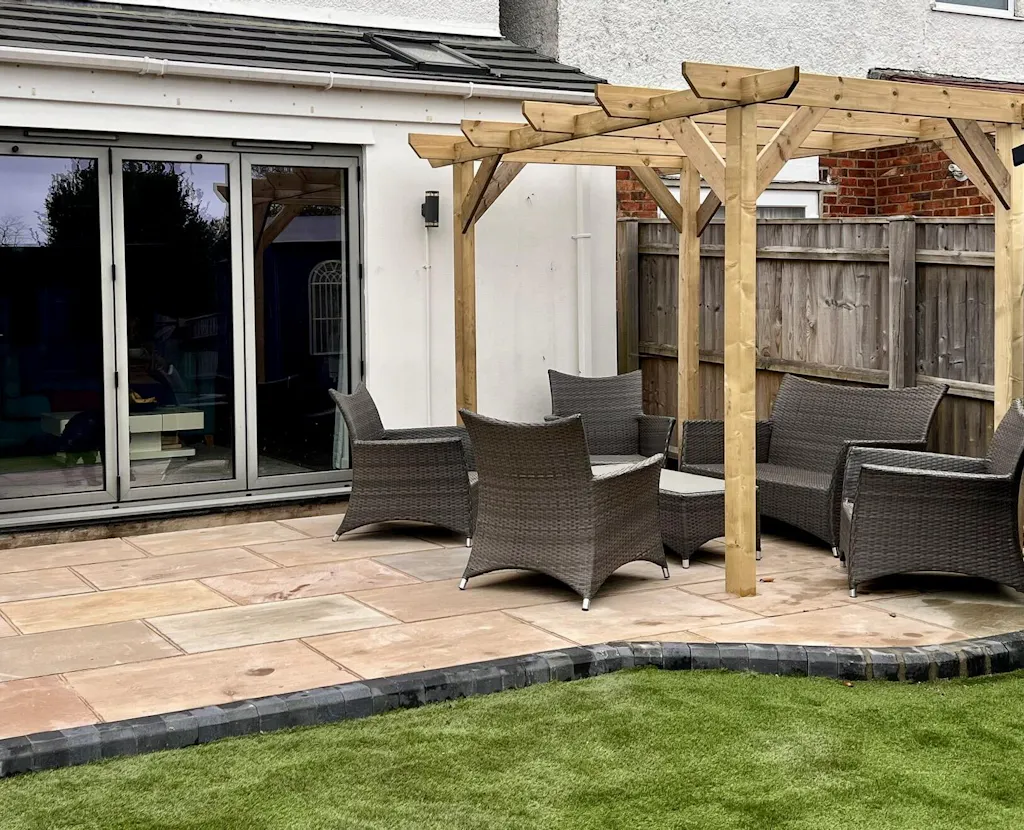

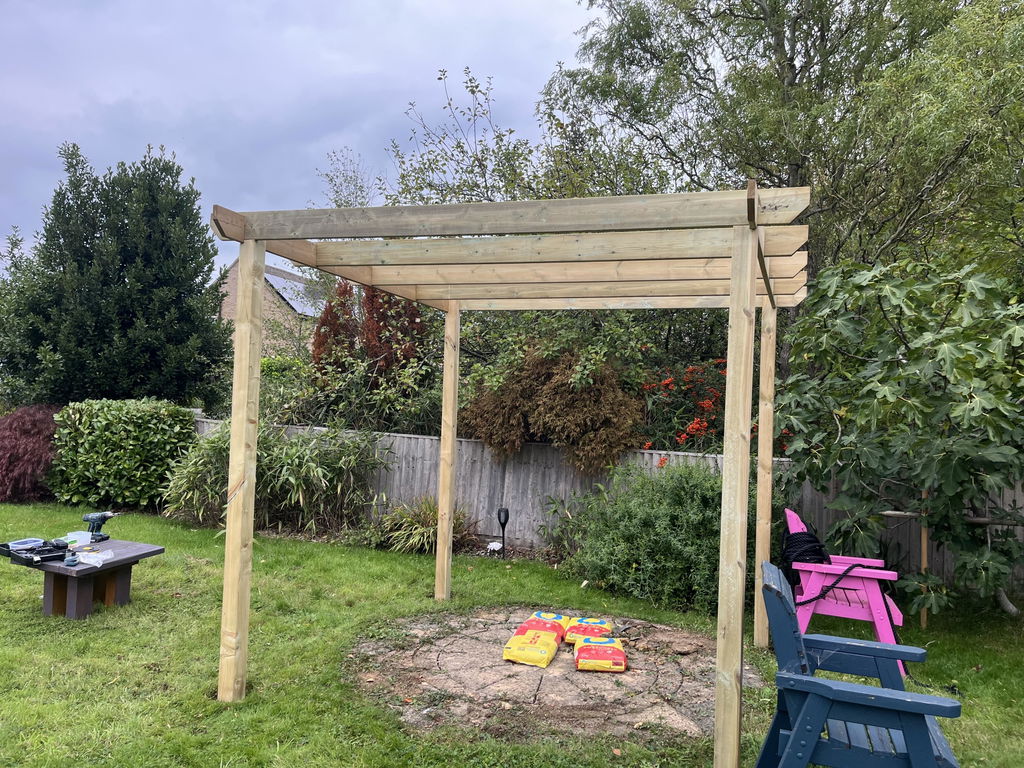

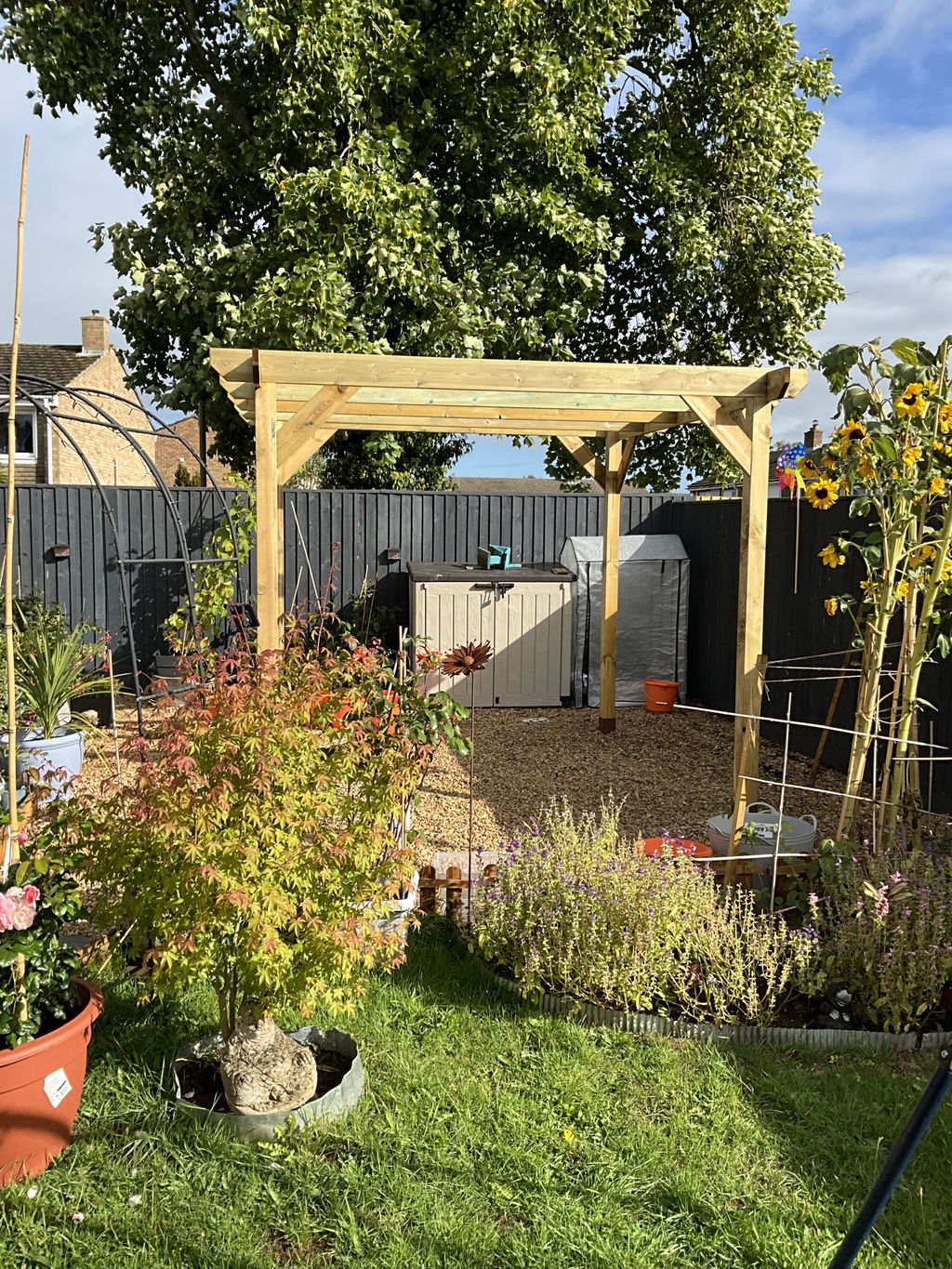

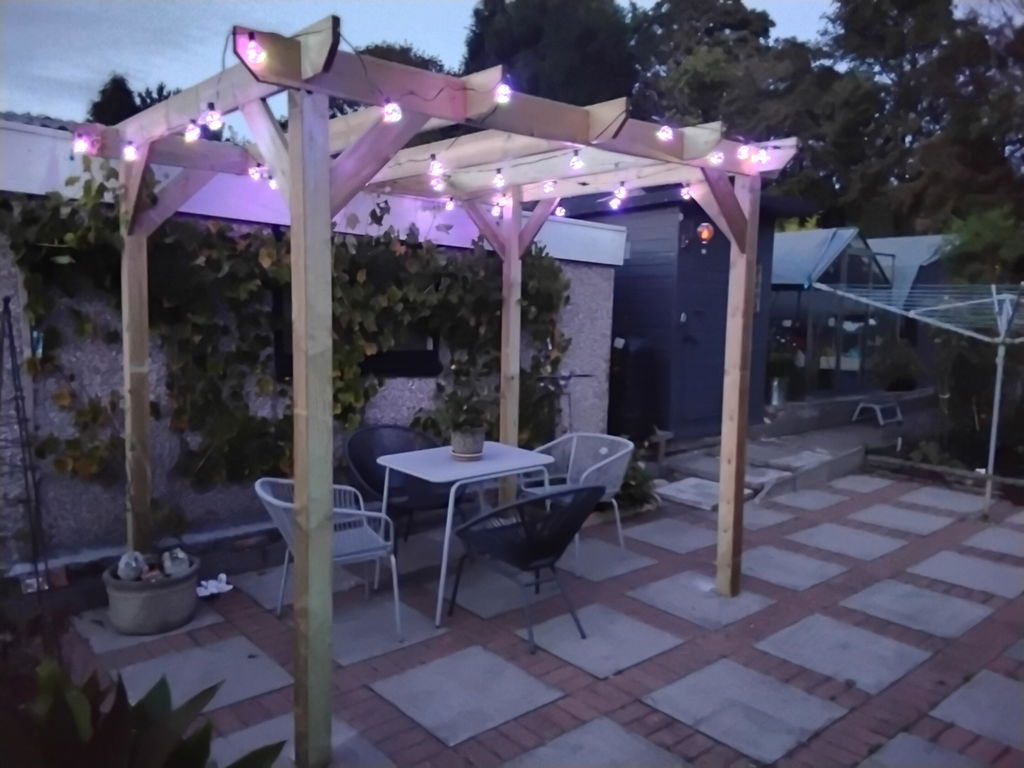

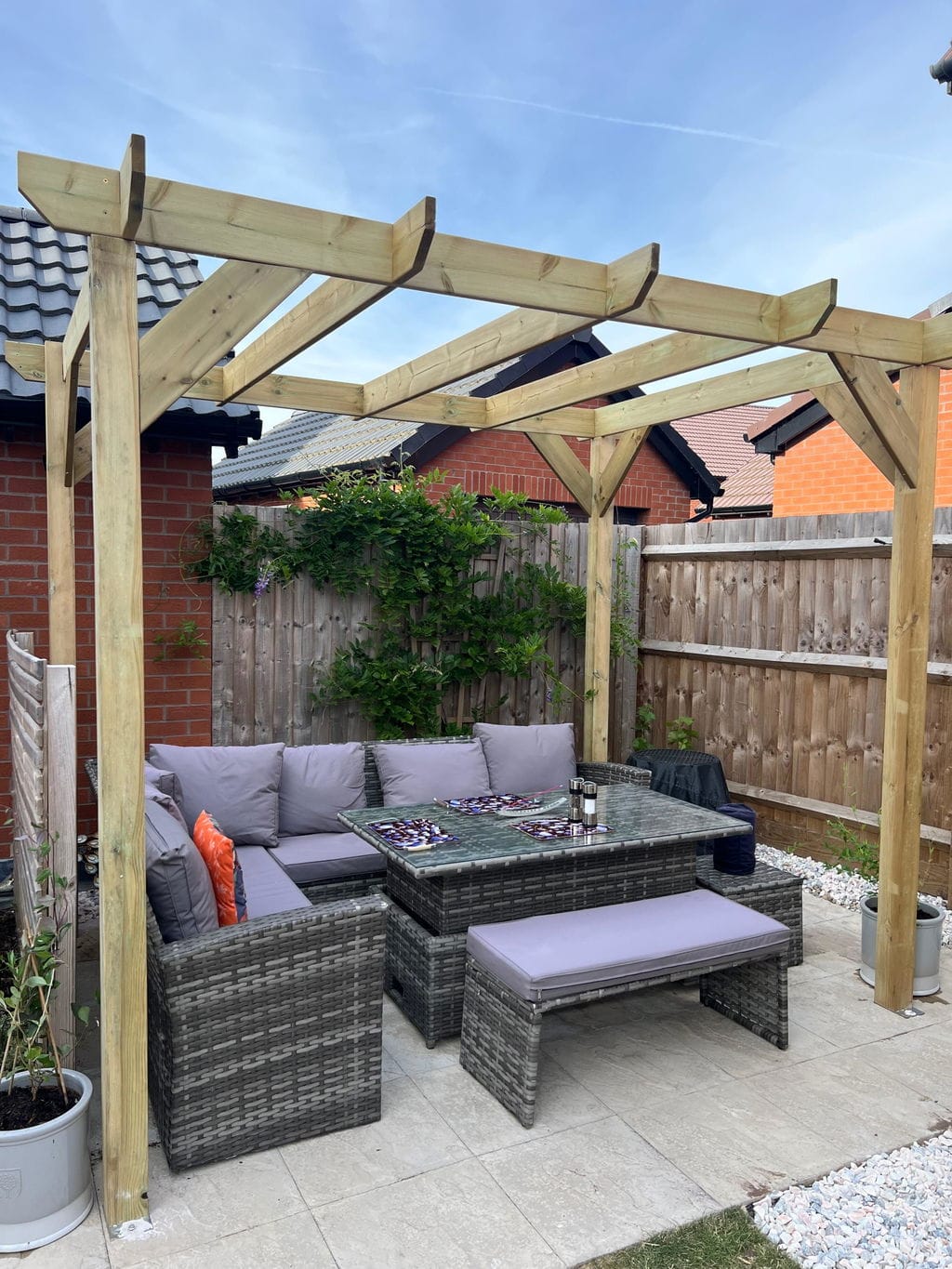

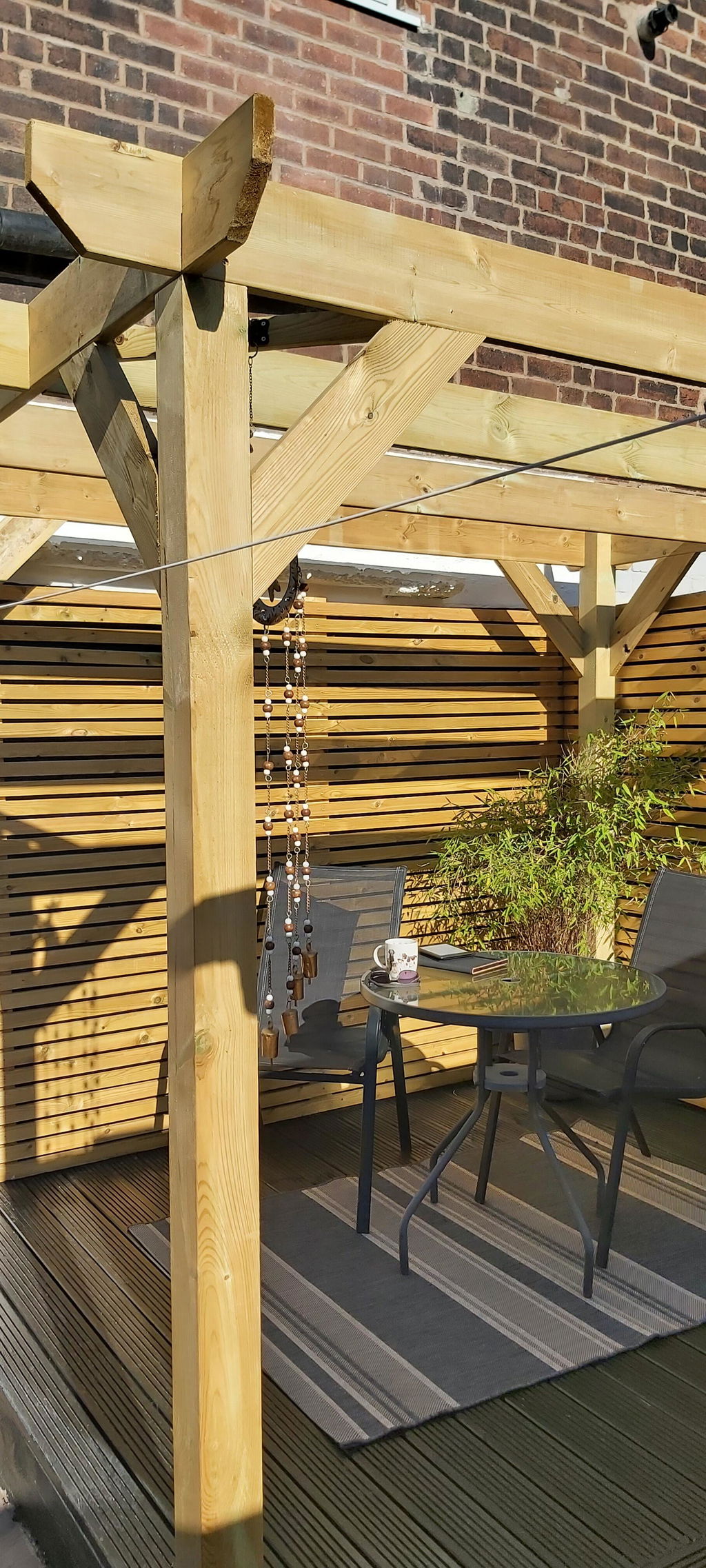

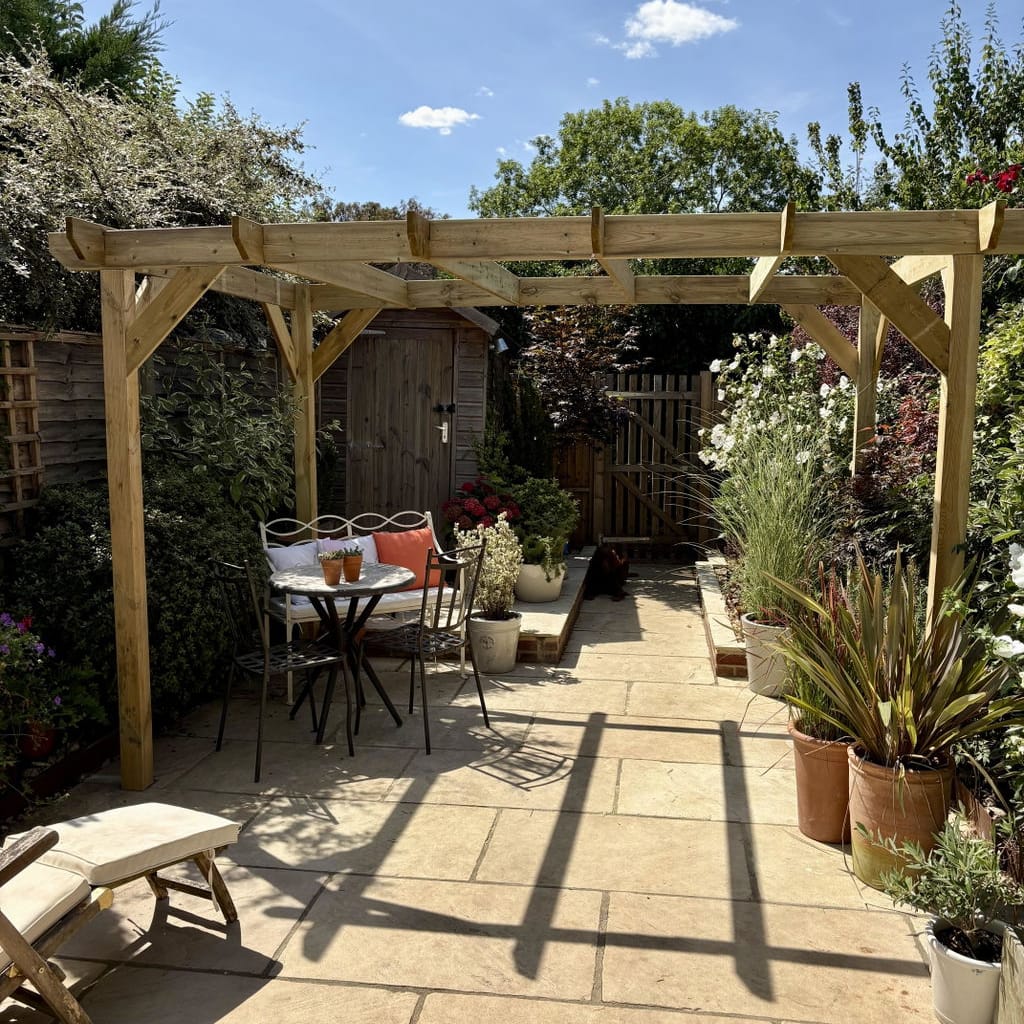

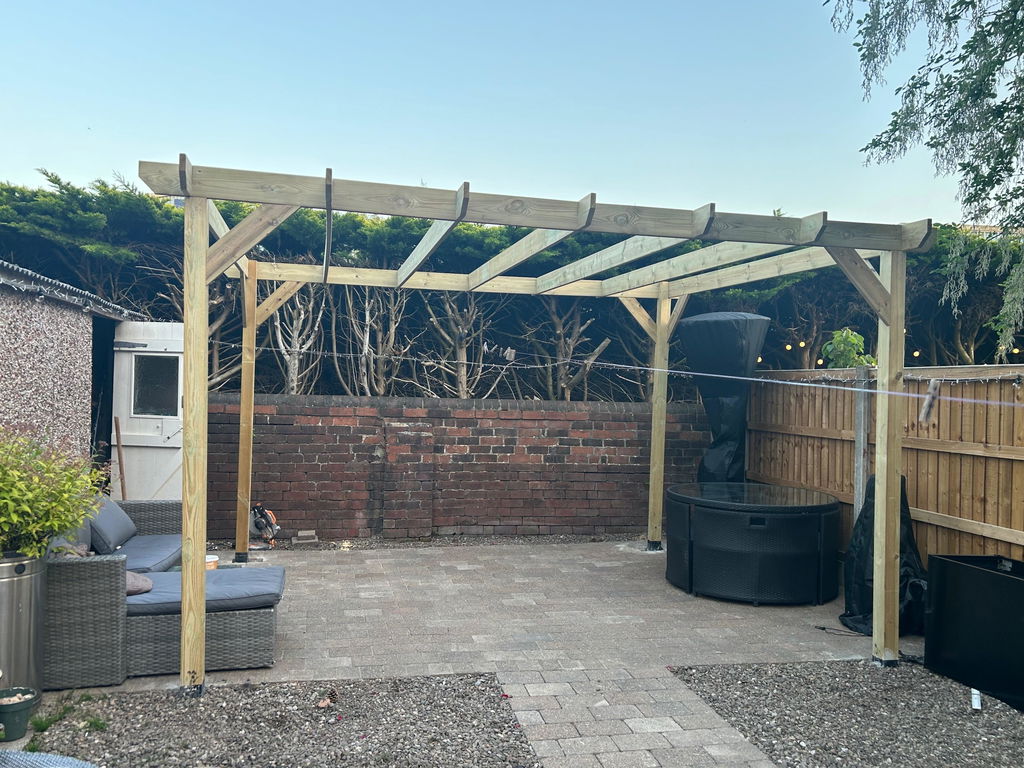

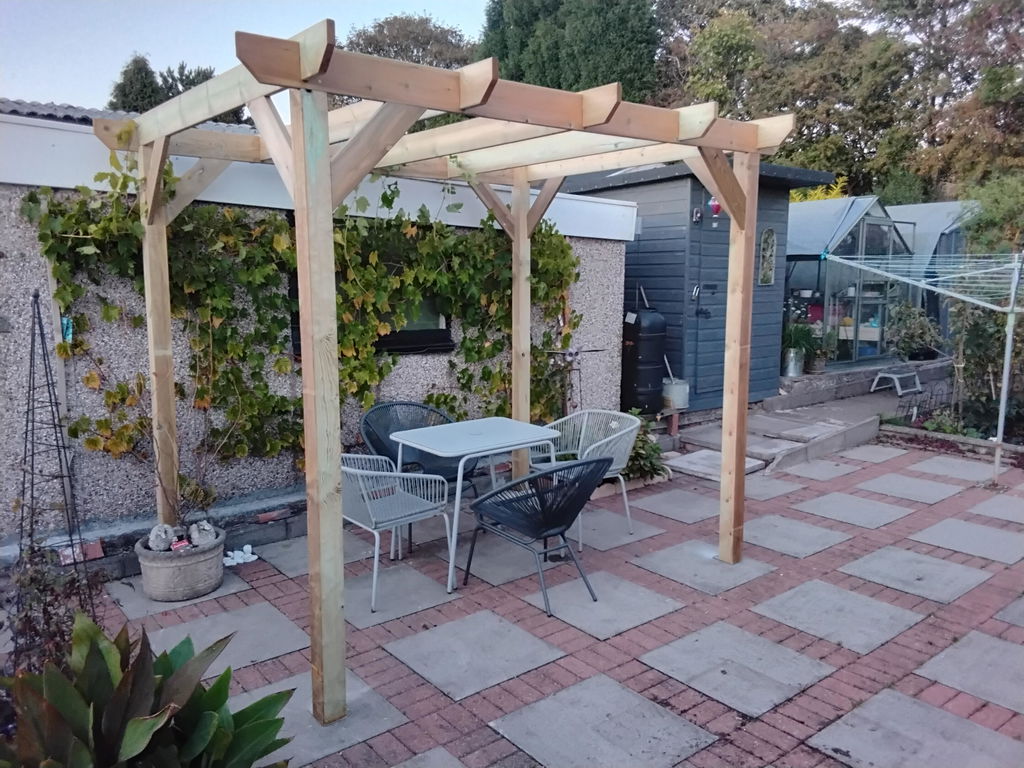

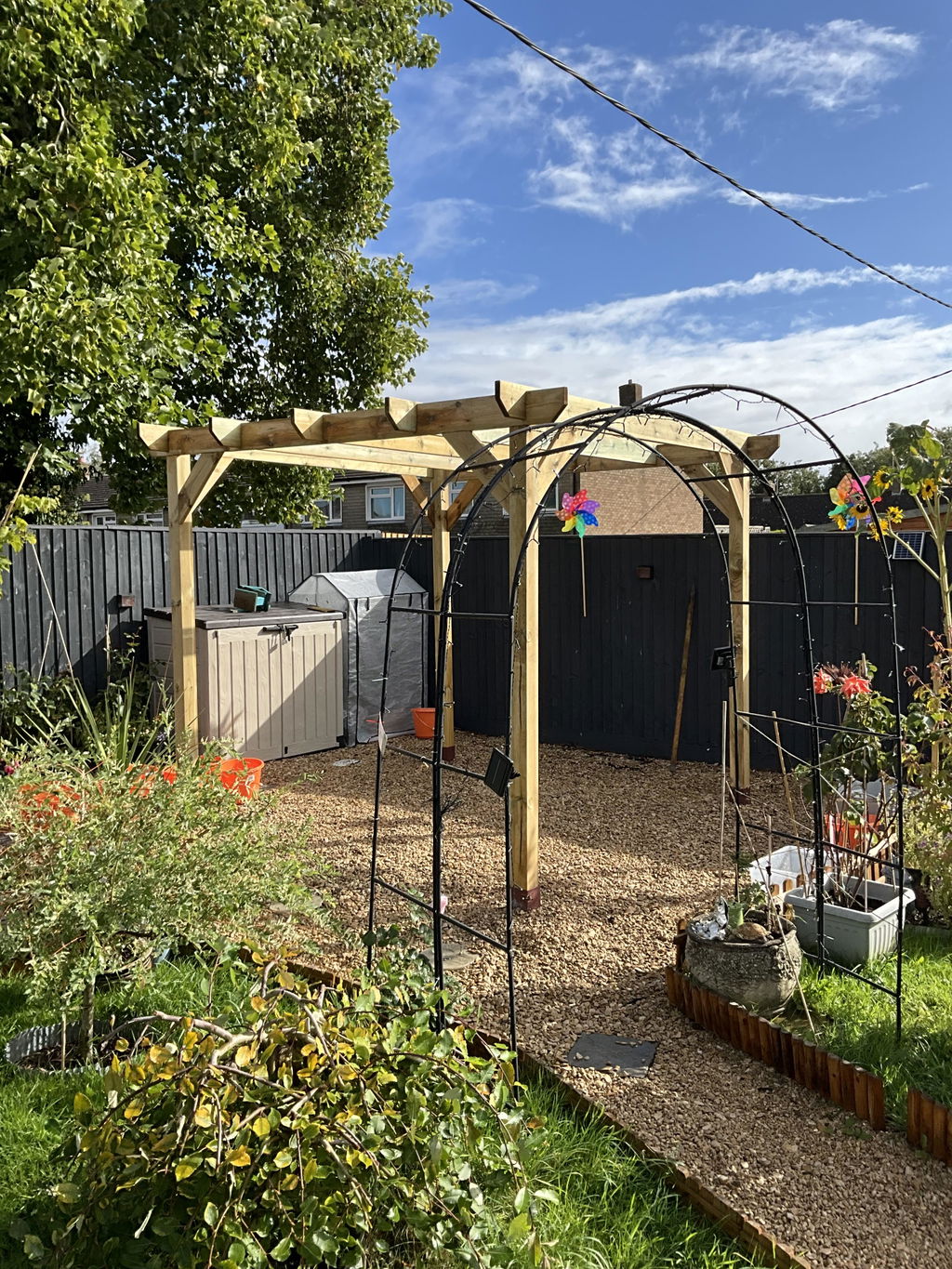

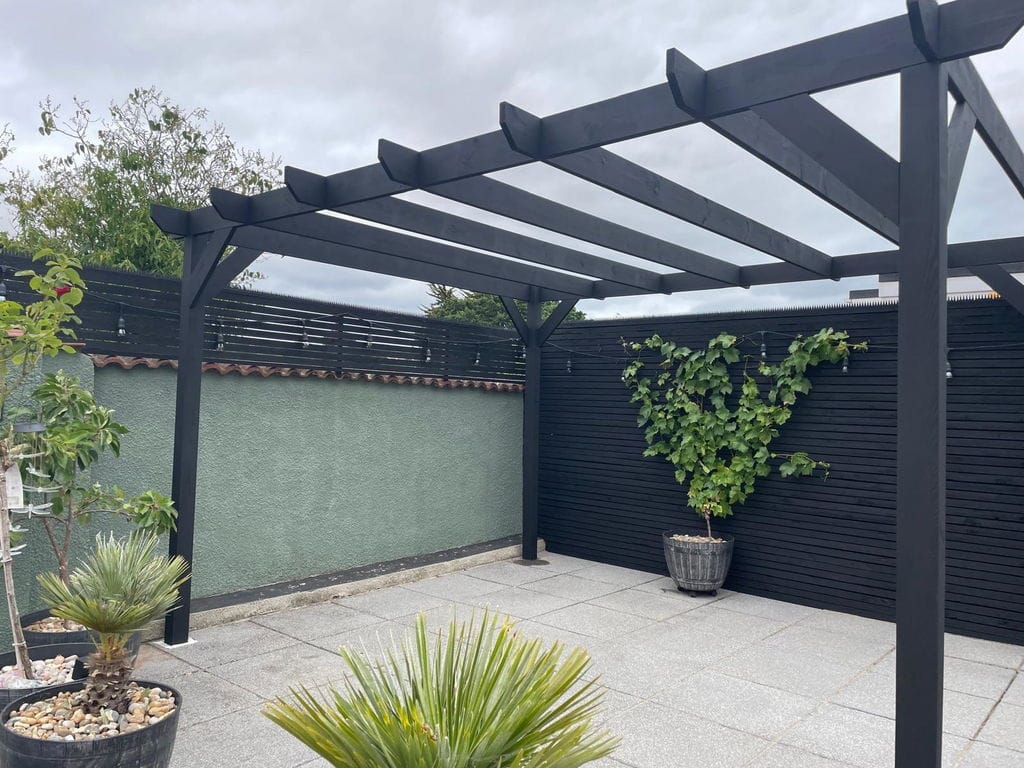

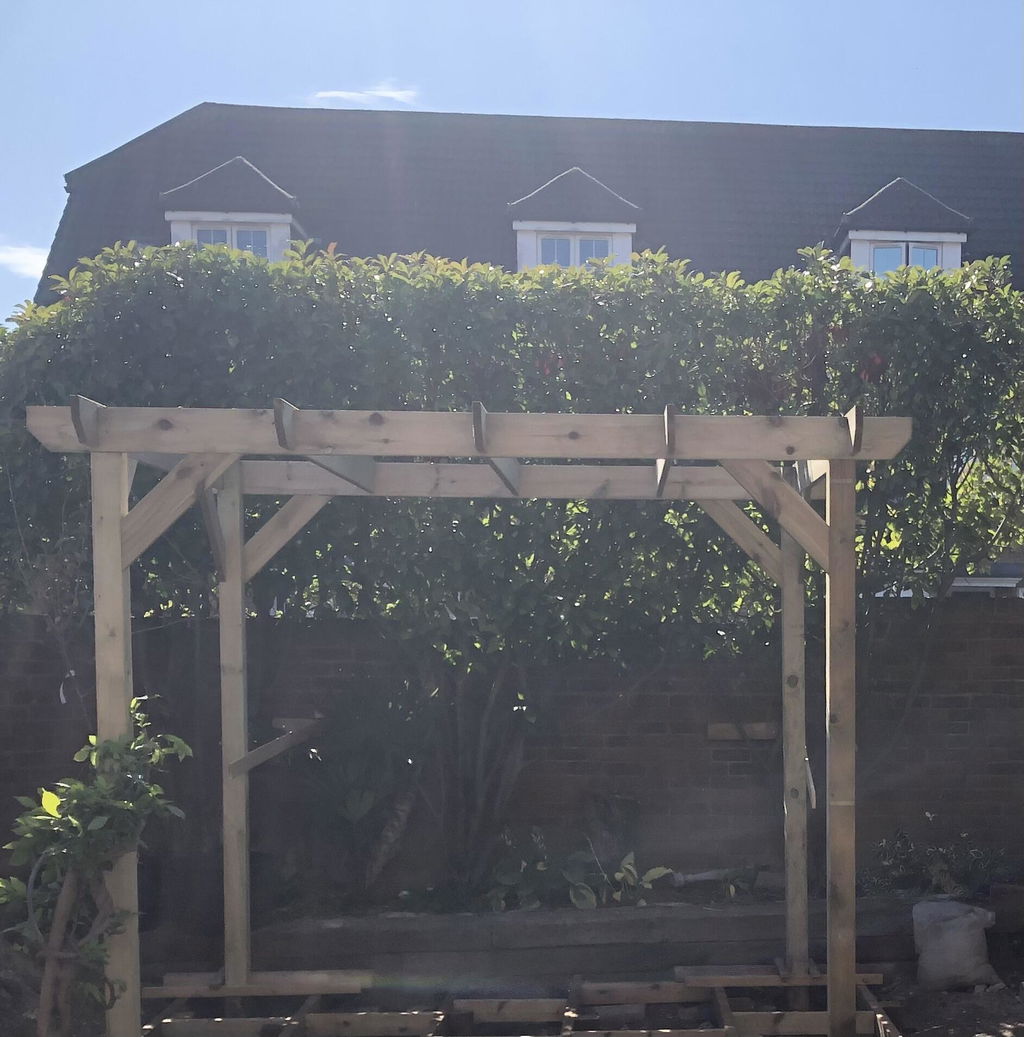

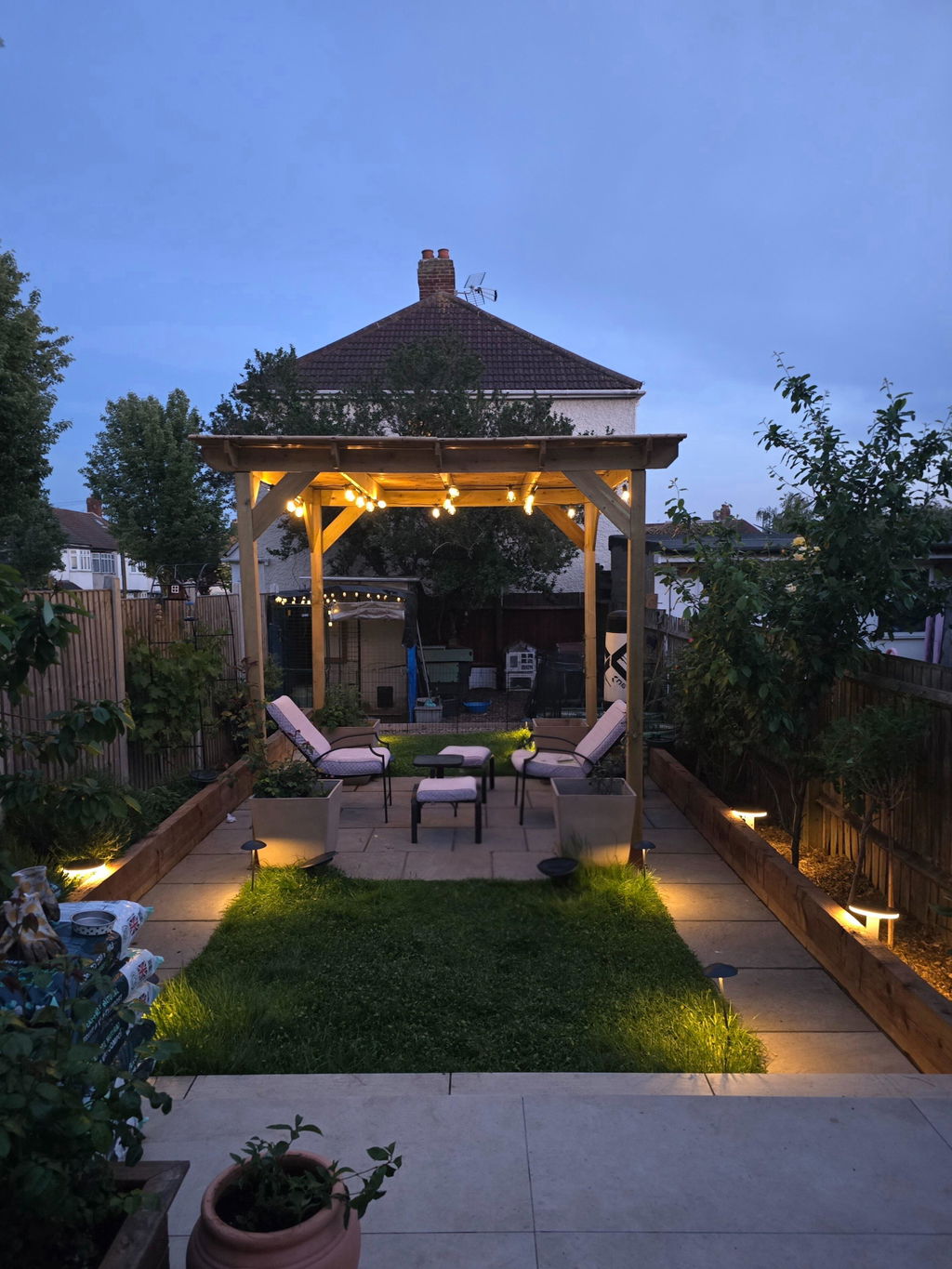

We supply a base plate fixing kit when 2.4m posts are selected (this enables securing down onto decking, concrete or other hard surfaces, not required if securing by other means or you are intending on digging a hole and putting posts down into concrete), screws to fix timbers together come with this product as standard, the base plate kit also includes fixing down bolts and washers, extra screws, drill bits and a screwdriver bit. Most pictures are from our customers, some pictures show fence post spikes and different means of fixing to the ground that customers have fitted, these are not included, if base plate kit is selected you will receive our base plates that fix up into the bottom of post and then you have a singular to fix down through, this is sufficient as the weight keeps it in place, a picture of this plate is in the pictures above, dimensions of plates is 140mm x 95mm with one hole in for fixing down.

Specification

These versatile pergolas make a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for growing plants up and over your hot tub, pond or seating area.

Made from tanalised, pressure treated redwood pine they are built to last and come with a 10 year warranty. This pergola is very sturdy and durable.

Features

• Tanalised pressure treated timbers.
• Many different sizes and bespoke designs available.
• Fixings kit included, drill bits, bolts, screws and galvanised base plates (plates are optional) included.
• 32mm x 125mm rails and runners with chamfered ends.
• 95mm x 95mm x 2400mm posts, smooth timber.
• Rails and runners all rebated, just slot together and screw to fasten.
• Manufactured by master craftsmen, a high-quality product.
• Full assembly required.
• The gap between the last two roof rails may differ slightly from the others, this is normal.
• Pond shown in some images is not included, see our range of Raised Timber Ponds

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, see our guide to Timber Characteristics

Download Timber Pergola installation instructions.

Tax and shipping included.

View our Installation Video below for simple steps to get your pergola installed.
