Pergolas and Gazebos

Tanalised Spruce, pressure treated heavy duty timber Pergola DIY Kit, manufactured from high quality slow-grown Spruce timber treated to ensure a 10 year warranty for rot. Compared to Redwood Pine, Spruce is lighter in colour, stronger and generally has less imperfections.

We have a great selection of pergolas and gazebos, see the full Timber Pergola and Gazebo Range, we also offer exactly the same Heavy Duty Timber Pergola kit but in Redwood Pine which is slightly more rustic looking.

This range goes up to 3.6m, if you want longer please checkout our Large Size Timber Pergola Kits.

In stock for a 1-2 week delivery! Now delivered anywhere in the UK for free apart from Northern Ireland and Scottish postcodes IV and KW, we can still deliver there but it's at extra cost.

Post length is 2.4m or 2.7m selectable above, if you select 2.7m then there are no base plates, If you select 2.4m then base plates are supplied, the tanalised treatment goes right through the timber.

The length and depth are determined by the options selected above, the first dimension is the length, the second the depth and direction of the multiple roof runners, the dimensions refer to the widest point of the outside of the roof rails, it is then approx 300mm narrower than the roof rail dimension to the outside of the upright posts each side so 600mm in total, so for example a 3 x 3 pergola would be 2.4 x 2.4 to the outside of the upright posts.

We supply steel base plates if you order 2.4m posts (this enables securing down onto decking, concrete or other hard surfaces, not required if securing by other means or you are intending on digging a hole and putting posts down into concrete), screws to fix timbers together come with this product as standard. Most pictures are from our customers, some pictures show fence post spikes and different means of fixing to the ground that customers have fitted, these are not included.

Specification

These versatile pergolas make a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for growing plants up and over your hot tub, pond or seating area.

Made from tanalised, pressure treated slow grown spruce, they are built to last and come with a 10 year warranty. This pergola is very sturdy and durable.

Features

• Tanalised pressure treated timbers.
• 32mm x 125mm rails and runners with chamfered ends.
• 95mm x 95mm x 2400mm posts, smooth timber.
• Rails and runners all rebated, just slot together and screw to fasten.
• Full assembly required.
• The gap between the last two roof rails may differ slightly from the others, this is normal.
• Pond shown in some images is not included, see our range of Raised Timber Ponds

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, see our guide to Timber Characteristics

Download Timber Pergola installation instructions.

Tax and shipping included.

View our Installation Video below for simple steps to get your pergola installed.

Tanalised, pressure treated heavy duty timber Pergola DIY Kit, manufactured from high quality redwood timber treated to ensure a 10 year warranty for rot. Many sizes available and bespoke designs are catered for, contact us for any special requirements. Manufactured by members of the guild of master craftsmen.

We have a great selection of pergolas and gazebos, see the full Timber Pergola and Gazebo Range, we offer the same Timber Pergola kit as this but in spruce timber, spruce is a whiter timber, is stronger and has less imperfections than redwood pine.

This range now goes up to 4.2m, if you want longer please checkout our XL Size Timber Pergola Kits.

In stock for a 2 week delivery! Now delivered anywhere in the UK for free apart from Scottish postcodes IV and KW and some other remote areas, we can still deliver there but it's at extra cost, please check if you are not sure, we do not currently deliver to Northern Ireland.

Post length is 2.4m or 2.7m, these are selectable above, we recommend 2.4m if you are using base plates to fix down, 2.7m if you are digging into ground/ concrete, if you select 2.4m you get base plates, if you select 2.7m you do not.

The length and depth are determined by the options selected above, the first dimension is the length, the second the depth and direction of the multiple roof runners, the dimensions refer to the widest point of the outside of the roof rails, it is then approx 200mm narrower than the roof rail dimension to the outside of the upright posts each side so 400mm in total, so for example a 3 x 3 pergola would be 2.6 x 2.6 to the outside of the upright posts.

We supply a base plate fixing kit when 2.4m posts are selected (this enables securing down onto decking, concrete or other hard surfaces, not required if securing by other means or you are intending on digging a hole and putting posts down into concrete), screws to fix timbers together come with this product as standard, the base plate kit also includes fixing down bolts and washers, extra screws, drill bits and a screwdriver bit. Most pictures are from our customers, some pictures show fence post spikes and different means of fixing to the ground that customers have fitted, these are not included, if base plate kit is selected you will receive our base plates that fix up into the bottom of post and then you have a singular to fix down through, this is sufficient as the weight keeps it in place, a picture of this plate is in the pictures above, dimensions of plates is 140mm x 95mm with one hole in for fixing down.

Specification

These versatile pergolas make a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for growing plants up and over your hot tub, pond or seating area.

Made from tanalised, pressure treated redwood pine they are built to last and come with a 10 year warranty. This pergola is very sturdy and durable.

Features

• Tanalised pressure treated timbers.
• Many different sizes and bespoke designs available.
• Fixings kit included, drill bits, bolts, screws and galvanised base plates (plates are optional) included.
• 32mm x 125mm rails and runners with chamfered ends.
• 95mm x 95mm x 2400mm posts, smooth timber.
• Rails and runners all rebated, just slot together and screw to fasten.
• Manufactured by master craftsmen, a high-quality product.
• Full assembly required.
• The gap between the last two roof rails may differ slightly from the others, this is normal.
• Pond shown in some images is not included, see our range of Raised Timber Ponds

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, see our guide to Timber Characteristics

Download Timber Pergola installation instructions.

Tax and shipping included.

View our Installation Video below for simple steps to get your pergola installed.

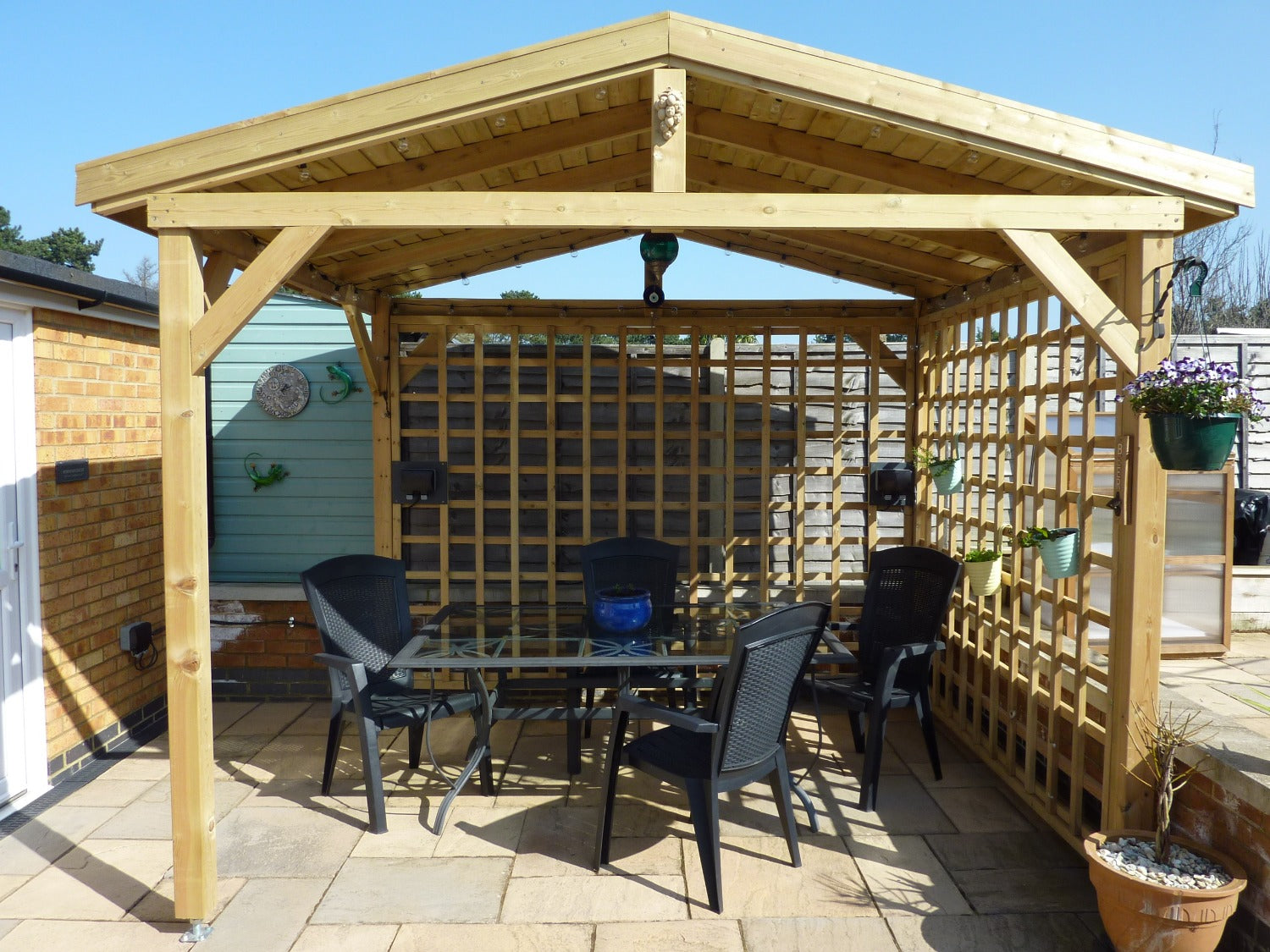

Tanalised, pressure treated timber Extra Heavy Duty Gazebo DIY kit, manufactured from high quality redwood timber treated to ensure a 10 year warranty for rot. Choice of either a full weatherproof feather edge timber roof or felt tiles in various colours. Manufactured by members of the guild of master craftsmen. This heavy duty version of our best selling gazebo is extremely strong and made from whopping timbers including 6" posts.

View our full range of Timber Pergolas and Gazebos.

In stock for a 2 week delivery! Now delivered anywhere in the UK for free apart from Scottish postcodes IV and KW and some other remote areas, we can still deliver there but it's at extra cost, please check if you are not sure, we do not currently deliver to Northern Ireland.

The width of the gazebo is the first dimension and is the gable end, the second is the depth.

Specification

This versatile gazebo makes a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for providing shelter over your hot tub, pond or seating area, made from the best quality of timber which is planed smooth.

This gazebo kit option includes the full timber frame, fascia's and timber roof, a very high quality gazebo.

Made from tanalised, pressure treated redwood pine these timber gazebo's are built to last and come with a 10 year warranty. This gazebo is very sturdy and durable, if you order with feather-edge roof it is not strictly waterproof as timber does move and has knots etc, we do supply a waterproof membrane to fit under the feather edge boards though if you would like it to be fully waterproof or you need to order felt roof.

We supply fixing down base plates as part of the kit, these are 220mm x 150mm.

Timber Gazebo Features

• Overall height to ridge 2780mm approx.
• Eaves height 2150mm approx.
• Treated 150mm x 150mm upright posts, 4.8m and 6m length gazebos have six posts.
• 50mm x 100mm roofing timber frame treated and cut to size.
• Roof pitch - 2.4m width - 17 degree, 3m width - 15 degree, 3.6m width - 12 degree.
• Fascia's for four sides included.
• 25 x 125mm feather edge tanalised roof timbers.
• Roof dims to outside approx 300mm wider than upright posts on the sloped side and approx 80mm wider on the gable end.
• All cut to length with ready-made gables supplied.
• Tanalised pressure treated timbers.
• Fixings kit included, drill bits, bolts, screws.
• Manufactured by master craftsmen, a high-quality product.
• Full assembly required.

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, it should be noted that only exceptionally bad imperfections would mean that we would replace the product, see our guide to Timber Characteristics

Download Timber Gazebo Installation Instructions

 Tax and shipping is included.

Tanalised, pressure treated heavy duty timber Double Rail Pergola DIY Kit, manufactured from high quality redwood timber treated to ensure a 10 year warranty for rot. This version is our range of larger sized pergolas with double rail configuration which adds further timbers giving a more substantial look and feel.

We have a great selection of pergola's and gazebo's, see the full Timber Pergola and Gazebo Range, if you are after a more cost-effective pergola our Standard Heavy Duty Range should give you what you need.

In stock for a 1 week delivery! Now delivered anywhere in the UK for free apart from Northern Ireland and Scottish postcodes IV and KW, we can still deliver there but it's at extra cost.

Post length is 2.7m, these can be paired with either the bolt-down feet for going onto concrete or decking or with a spike for going down into grass, this is selectable in the options above.

The width and length are determined by the options selected above, these are the widest part of the roof rails and runners not the posts, please see the corresponding drawing picture for the selected size to understand where the posts are in relation to the roof rails, we recommend flicking through the sizes before selecting the feet type, this way you have the correct image on the page which shows the sizes of the pergola, if you want to go back to the size image again you simply need to select None for the feet type, this will take you back to the picture with dimensions, please enquire if unsure.

These versatile pergolas make a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for growing plants up and over your hot tub, pond or seating area.

Features

• Tanalised pressure treated timbers.
• Many different sizes and bespoke designs available.
• Easy to assemble with the minimum of tools required.

• 34mm x 140mm rails and runners with chamfered ends.
• 95mm x 95mm x 2700mm posts, smooth, planed timber.
• Rails and runners all rebated, just slot together and screw to fasten.
• Curved decorative corner braces

• Full assembly required.
• Pond shown in some images is not included, see our range of Raised Timber Ponds

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, see our guide to Timber Characteristics

Download Timber Pergola installation instructions.

Tax and shipping included.

Tanalised, pressure treated heavy duty timber Lean-To Pergola DIY Kit, manufactured from high quality redwood timber treated to ensure a 10 year warranty for rot. This version is our range of larger sized lean-to pergolas with more than two posts.

We have a great selection of pergola's and gazebo's, see the full Timber Pergola and Gazebo Range.

This is our large size lean-to range, we have our smaller size range of lean-to pergolas if you need a smaller size.

In stock for a 1 week delivery! Now delivered anywhere in the UK for free apart from Northern Ireland and Scottish postcodes IV and KW, we can still deliver there but it's at extra cost.

Post length is 2.7m and can be shortened by the customer if required, these can be paired with either the bolt-down feet for going onto concrete or decking or with a spike for going down into grass, this is selectable in the options above.

The width and length are determined by the options selected above, these are the widest part of the roof rails and runners not the posts, please see the corresponding drawing picture for the selected size to understand where the posts are in relation to the roof rails, we recommend flicking through the sizes before selecting the feet type, this way you have the correct image on the page which shows the sizes of the pergola, if you want to go back to the size image again you simply need to select None for the feet type, this will take you back to the picture with dimensions, please enquire if unsure.

These versatile pergolas make a great, decorative addition to your garden or any other outdoor space, perfect for providing shade from the sun and for growing plants up and over your hot tub, pond or seating area.

Features

• Tanalised pressure treated timbers.
• Many different sizes and bespoke designs available.
• Easy to assemble with the minimum of tools required.

• 34mm x 140mm rails and runners with chamfered ends.
• 95mm x 95mm x 2700mm posts, smooth, planed timber.
• Rails and runners all rebated, just slot together and screw to fasten.
• Curved decorative corner braces

• Full assembly required.
• Pond shown in some images is not included, see our range of Raised Timber Ponds

We only supply the very best quality of timber but it should be remembered that timber is a natural product and as such is subject to imperfections which are perfectly acceptable, see our guide to Timber Characteristics

Download Timber Pergola installation instructions.

Tax and shipping included.
